Sale!

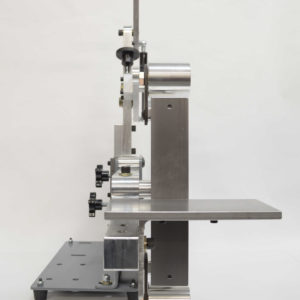

SRG 1.5 2x72 Belt Grinder/Sander Frame With Wheels

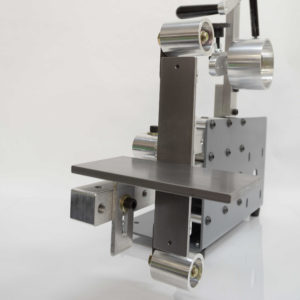

SRG 1.5 2x72 Belt Grinder/Sander Frame With Wheels Side

SRG 1.5 2×72 1hp Complete Ready to Run Package #1

$1,960.00

SRG 1.5 2×72 Belt Grinder
360 Platen
4″ drive and tracking wheel
16pc 2″ x 72″ CERAMIC/AO Belt Starter Kit
1HP Motor and VFD Combo
VFD Bracket
56C spacer
4″ x 7.75″ adjustable work rest
Two 1.5″ square tooling arms

Available on backorder

Category: Knife Grinders

Please Read!!! As of 08-30-2022 I will allow limited backorders on belt grinders. Lead time is an estimated 3-8 weeks. I do have a few grinders that have a metallic blue powder coat finish on the frame for $200 more. These can also be upgraded a 2hp motor and drive with a 6″ drive wheel for $250 more. I do offer a 10% cash discount. Please contact for information.

This SRG 1.5 2×72 1hp belt grinder complete package includes everything needed to start grinding, even abrasive belts. Although this grinder package is built to run everyday for hours it was configured for the new hobbyist who is just going to use it for the occasional evening and or weekends. It ships in two boxes and will require some assembly.

SRG 1.5 Package #1 Features:

Uses 2″ x 72″ grinding/sanding belts
Uses 1.5 “x 1.5” square aluminum tooling arms
3x arm slots with 2 lock down positions each (Includes two Knobs)
0.5″ spindles for idler wheels and tracking wheel
Includes the 360 Platen:
- Includes 10″ flat platen attachment
- 2″ diameter idler wheels on platen
Includes adjustable height and angle 4″ x 7.75″ work rest
Adjustable belt tracking
Gas strut tensioner with cam lever (can easily change belts with one hand)
Designed to use a 56C TEFC motor but not limited to that style (4 on 5.875″ bolt circle pattern)
Integral base with rubber feet that allows many motor mount options
Includes four 3/8″-16 x 1″ button head cap screws for a face mount motor
4″ diameter tracking wheel
4″ Drive wheel with 5/8″ Bore
16PC 2″ x 72″ CERAMIC/AO STARTER KIT:
- 2-36 GRIT PREMIUM ORANGE CERAMIC BELTS
- 2-60 GRIT PREMIUM ORANGE CERAMIC BELTS
- 2-120 GRIT PREMIUM ORANGE CERAMIC BELTS
- 2-220 GRIT PREMIUM RED “J” FLEX AO BELTS
- 2-320 GRIT PREMIUM RED “J” FLEX AO BELTS
- 2-400 GRIT PREMIUM RED “J” FLEX AO BELTS
- 2-600 GRIT PREMIUM RED “J” FLEX AO BELTS
- 2-800 GRIT PREMIUM RED “J” FLEX AO BELTS
VFD Bracket
56C Spacer
1HP Motor and VFD Combo Wired:

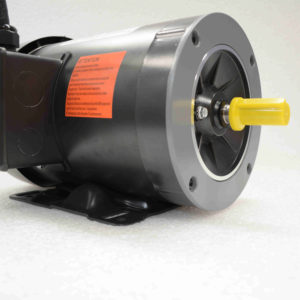

- 1hp 3-phase 3500rpm 56C Frame TEFC (Totally enclosed Fan Cooled) Motor
- KB Electronics KBAC-24D AC Motor Control 9987
- 14/3 6ft Power Cord
- 14/4 3ft Motor to Drive Cord
- Comes Wired for 115V with a NEMA 5-15P straight Blade Plug
- Motor has both Face and Base Mounts
- 5/8″ motor shaft diameter with included 3/16 Key
- Comes wired and tested
