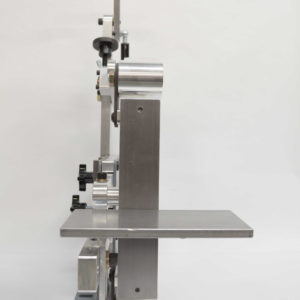

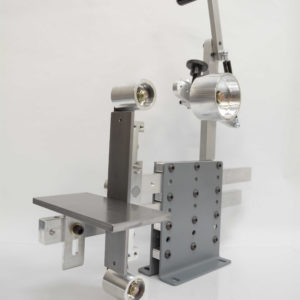

The Type One is currently my most affordable belt grinder option. By utilizing smaller 1.5″ x 0.75″ rectangular tooling arms the material cost and machine time is reduced making it a cost effective option. The narrower tooling arms don’t decrease the performance with the use most common platens, contact wheels and workrest. However if you plan to use larger accessories like a surface grinder attachment or larger bevel jigs I would recommend the 1.5 version with the 1.5″ square arm. If you buy this version and later one decide you want an SRG, Type One 1.5 or SRG 1.5, it’s no problem. SInce my design is bolted together you can convert my grinder into another model with a simple conversion kit.

Features:

• Uses 2″ x 72″ grinding/sanding belts
• Reversible Frame (can be reconfigured to use both CCW and CW rotating motors)
• Uses 1.5″ x 0.75″ rectangle aluminum tooling arms ( includes one clamp and one standard tooling arm)
• 3x arm slots with 2 lock down positions each (Includes two knobs)
• 0.5″ spindles for idler wheels and tracking wheel 1/2″-20 threads
• Includes the 360 Platen with a 10″ plate
• Includes adjustable height and angle 4″x7.75″ work rest
• Adjustable belt tracking
• Gas strut tensioner with cam lever (can easily change belts with one hand)
• 2″ diameter idler wheels on platen
• 4″ diameter tracking wheel
• 4″, 6″ and 8″ drive wheel options

• Additional tooling arms for contact wheels
• Contact wheels (Coming Soon)
• Small wheel attachment (Coming Soon)
• 4″x11.75″ Large work table
• Motor and Drive Combos
• GP Platen (Coming Soon)
• Surface Grinder (Coming Soon)
• SRG 1.5 Conversion
• Additional tooling arm lock down Knobs

Additional Comments:

• Belt drive wheels as large as 8″ will work with this grinder but it’s recommended to do a mockup with with a belt on to make sure everything clears.

Any questions or concerns please ask.
