As of 11-23-2021 I will no longer accept credit cards/electronic payments for belt grinders. The move will help drastically reduce emails/phone calls translating to shorter lead times and help keep the price low with the rising material cost. The hope is to get the lead time back under the 2-4 weeks after the first of the year.

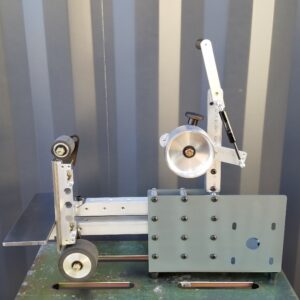

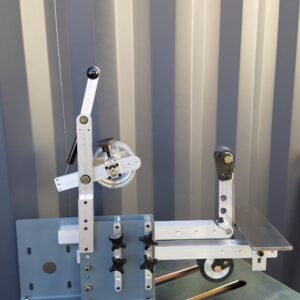

- Uses 2″x72″ Abrasive grinding/sanding belts (2″ x 60″ smallest belt size that fits)
- Uses 1.5″x1.5″ square aluminum tooling arms
- 3x Tooling arm slots with 2 lock down positions each (Includes 4 Knobs)

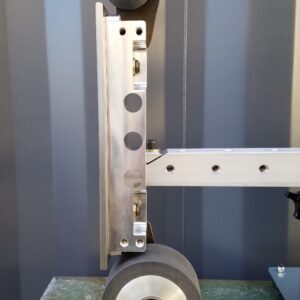

- Includes the 360 platen attachment with tooling arm
- 2″ 70A Polyurethane Contact Wheel
- 4″ 70A Polyurethane Contact Wheel
- Large 10″ x 2″ Platen Plate
- Includes Large adjustable height and angle 11.75″ x 4″ work rest with tooling arm
- Adjustable belt tracking
- Gas strut tensioner with cam lever (can easily change belts with one hand)
- Designed to use a 56C TEFC motor but not limited to that style (4 on 5.875″ bolt circle pattern)
- Includes the 56C motor spacer
- Includes VFD Mount
- KBAC-24D
- KBAC-27D
- KBAC-29D
- Integral base with rubber feet that allows many motor mount options
- Includes four 3/8″-16 x 1″ button head cap screws for a face mount motor
- Includes four 5/16″-18 x 1-1/4″ button head cap screws with washers and lock-nuts for base mount motors
- 5″ diameter tracking wheel
- 4″, 6″ and 8″ drive wheel options
- Additional tooling arms for contact wheels – See options Under Tooling Arms
- Small wheel attachment – Coming Soon!
- Vertical to horizontal base – Coming Soon!
