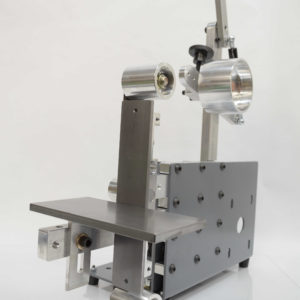

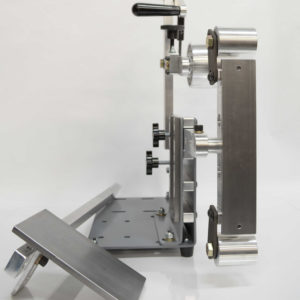

SRG 2×72 Belt Grinder/Sander Frame With Wheels

Name: SRG 2x72 Belt Grinder/Sander Frame With Wheels
SKU: 65
Availability: OutOfStock

$549.95 – $649.95

SKU: N/A Category: Knife Grinders

As of 11-23-2021 I will no longer accept credit cards/electronic payments for belt grinders. The move will help drastically reduce emails/phone calls translating to shorter lead times and help keep the price low with the rising material cost. The hope is to get the lead time back under the 2-4 weeks after the first of the year.

Features:

Uses 2″ x 72″ grinding/sanding belts
Uses 1.5 “x 0.75” rectangle aluminum tooling arms
3x arm slots with 2 lock down positions each (Includes two Knobs)
0.5″ spindles for idler wheels and tracking wheel
Includes the 360 Platen
- Includes 10″ flat platen attachment
- 2″ diameter idler wheels on platen
Includes adjustable height and angle 4″ x 7.75″ work rest
Adjustable belt tracking
Gas strut tensioner with cam lever (can easily change belts with one hand)
Designed to use a 56C TEFC motor but not limited to that style (4 on 5.875″ bolt circle pattern)
Integral base with rubber feet that allows many motor mount options
Includes four 3/8″-16 x 1″ button head cap screws for a face mount motor
4″ diameter tracking wheel
4″, 6″ and 8″ drive wheel options

Optional accessories (not included):

Any questions or concerns please ask.

Weight	65 lbs
Dimensions	26 × 20 × 13 in
Drive Wheel Options	4" drive wheel with 5/8" (.625") bore, 5/8" Bore, 6" drive wheel with 5/8" (.625") bore, 6" drive wheel with 7/8" (.875") bore, 7/8" Bore, 8" drive wheel with 5/8" (.625") bore, 8" drive wheel with 7/8" (.875") bore, NONE
Tracking Wheel Size	4" Tracking Wheel, 5" Tracking Wheel
